Dump Truck Woodworking Plan

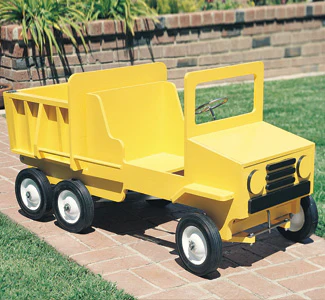

This kid's Dump Truck has a working dump box along with a steering mechanism. Pedal Powered! (48" long x approx 23" tall)

Note: There is no longer a Hardware Kit available for this Dump Truck. The wheels are 8" lawn mower wheels available at many of your Big Box Home Centers or Harbor Freight. The Pattern does have details on making the Truck without pedal action as well.

More Info

DIMENSIONS:
48" LONG X APPROX 23" TALL
FROM YOUR FAVORITE HARDWARE/LUMBER STORE
WOOD:
1 EACH OF:

• 1/2" X 4' X 8' PLYWOOD
• 3/4" X 7.5" X 9' PINE
• 1.5" X 7.5" X 24" PINE OR FIR
• 3/16" OR 1/4" X 4" X 6" PINE, MASONITE OR PLYWOOD
• 5/8" DIA. X 18" DOWEL

NAILS ETC.:

• SMALL BOX OF 1.25" FINISH NAILS
• SMALL CAN OF WOOD FILLER
• SMALL BOTTLE OF WOOD GLUE
• 1 QT OF YELLOW PAINT
• 1 PINT OF BLACK PAINT
• 8" LAWN MOWER WHEELS

ADDITIONAL HARDWARE/PARTS LIST IS AVAILABLE ON PATTERN

SAW:
TABLE SAW AND BAND SAW OR SCROLL SAW

PATTERN HAS DETAILS ON MAKING IT WITHOUT THE PEDAL ACTION.
